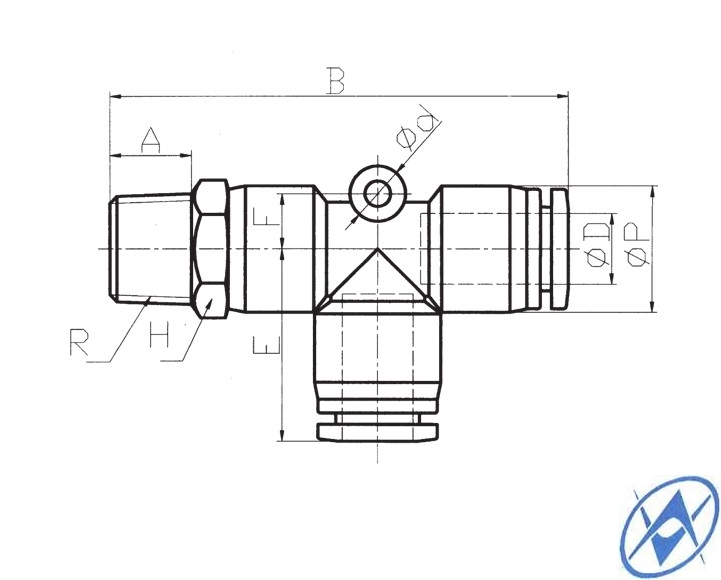

KQ2Y Тройник проходной ввертной
|
Номер заказа |
φD |
E |
B |
φP |
A |
R |
H |
F |
φd |
|
KQ2Y04-M5-AT001 |
4 |
17 |
40 |
10.5 |
4 |
M5 |
10 |
5 |
3.2 |
|
KQ2Y04-01-AT001 |
4 |
17 |
43 |
10.5 |
7 |
R1/8 |
10 |
5 |
3.2 |
|
KQ2Y04-02-AT001 |
4 |
17 |
45.5 |
10.5 |
9.5 |
R1/4 |
14 |
5 |
3.2 |
|
KQ2Y06-M5-AT001 |
6 |
19 |
41.5 |
13 |
4 |
M5 |
12 |
5.5 |
3.2 |
|
KQ2Y06-01-AT001 |
6 |
19 |
44.5 |
13 |
7 |
R1/8 |
12 |
5.5 |
3.2 |
|
KQ2Y06-02-AT001 |
6 |
19 |
47 |
13 |
9.5 |
R1/4 |
14 |
5.5 |
3.2 |
|
KQ2Y06-03-AT001 |
6 |
19 |
48.5 |
13 |
10.5 |
R3/8 |
17 |
5.5 |
3.2 |
|
KQ2Y06-04-AT001 |
6 |
19 |
52.5 |
13 |
13 |
R1/2 |
21 |
5.5 |
3.2 |
|
KQ2Y08-01-AT001 |
8 |
22.5 |
51.5 |
14.4 |
7 |
R1/8 |
14 |
6.5 |
3.2 |
|
KQ2Y08-02-AT001 |
8 |
22.5 |
54 |
14.4 |
9.5 |
R1/4 |
14 |
6.5 |
3.2 |
|
KQ2Y08-03-AT001 |
8 |
22.5 |
55 |
14.4 |
10.5 |
R3/8 |
17 |
6.5 |
3.2 |
|
KQ2Y08-04-AT001 |
8 |
22.5 |
59 |
14.4 |
13 |
R1/2 |
21 |
6.5 |
3.2 |
|
KQ2Y10-01-AT001 |
10 |
28 |
62 |
18.4 |
7 |
R1/8 |
17 |
8 |
4.2 |
|
KQ2Y10-02-AT001 |
10 |
28 |
64.5 |
18.4 |
9.5 |
R1/4 |
17 |
8 |
4.2 |
|
KQ2Y10-03-AT001 |
10 |
28 |
65.5 |
18.4 |
10.5 |
R3/8 |
17 |
8 |
4.2 |
|
KQ2Y10-04-AT001 |
10 |
28 |
69.5 |
18.4 |
13 |
R1/2 |
21 |
8 |
4.2 |
|
KQ2Y12-02-AT001 |
12 |
31 |
68 |
20 |
9.5 |
R1/4 |
19 |
8.5 |
4.2 |
|
KQ2Y12-03-AT001 |
12 |
31 |
69 |
20 |
10.5 |
R3/8 |
19 |
8.5 |
4.2 |
|
KQ2Y12-04-AT001 |
12 |
31 |
72.5 |
20 |
13 |
R1/2 |
21 |
8.5 |
4.2 |
|
KQ2Y14-03-AT001 |
14 |
30.9 |
76.7 |
25 |
10.5 |
R3/8 |
21 |
- |
- |
|
KQ2Y14-04-AT001 |
14 |
30.9 |
79.2 |
25 |
13 |
R1/2 |
21 |
- |
- |
|
KQ2Y16-03-AT001 |
16 |
33.3 |
76.3 |
25.6 |
10.5 |
R3/8 |
24 |
- |
- |
|
KQ2Y16-04-AT001 |
16 |
33.3 |
78.8 |
25.6 |
13 |
R1/2 |
24 |
- |
- |
