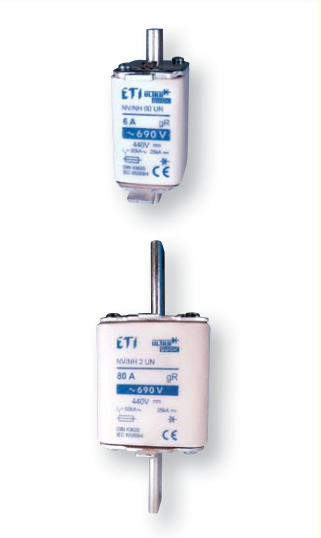

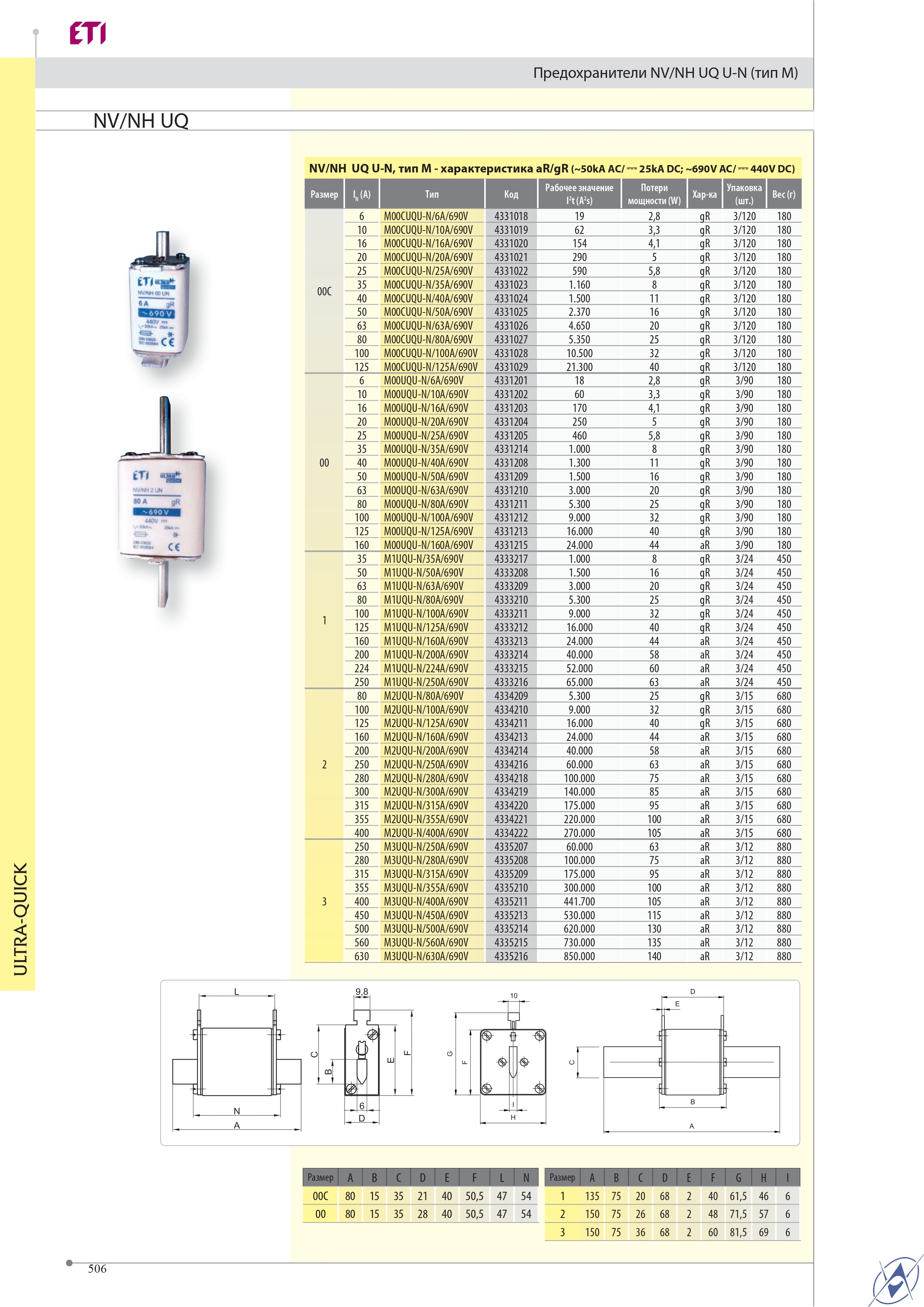

Ножевые предохранители NV/NH UQ U-N, тип M - характеристика aR/gR (~50kA AC/ 25kA DC; ~690V AC/ 440V DC)
|
NV/NH UQ U-N, тип M - характеристика aR/gR (~50kA AC/ 25kA DC; ~690V AC/ 440V DC) |
||||||||
|
Размер |
IN (A) |
Тип |
Код |
Рабочее значение I2t (A2s) |
Потери мощности (W) |
Хар-ка |
Упаковка (шт.) |
Вес (г) |
|
00C |
6 |
M00CUQU-N/6A/690V |
4331018 |
19 |
2,8 |
gR |
3/120 |
180 |
|
10 |
M00CUQU-N/10A/690V |
4331019 |
62 |
3,3 |
gR |
3/120 |
180 |
|
|
16 |
M00CUQU-N/16A/690V |
4331020 |
154 |
4,1 |
gR |
3/120 |
180 |
|
|
20 |
M00CUQU-N/20A/690V |
4331021 |
290 |
5 |
gR |
3/120 |
180 |
|
|
25 |
M00CUQU-N/25A/690V |
4331022 |
590 |
5,8 |
gR |
3/120 |
180 |
|
|
35 |
M00CUQU-N/35A/690V |
4331023 |
1.160 |
8 |
gR |
3/120 |
180 |
|
|
40 |
M00CUQU-N/40A/690V |
4331024 |
1.500 |
11 |
gR |
3/120 |
180 |
|
|
50 |
M00CUQU-N/50A/690V |
4331025 |
2.370 |
16 |
gR |
3/120 |
180 |
|
|
63 |
M00CUQU-N/63A/690V |
4331026 |
4.650 |
20 |
gR |
3/120 |
180 |
|
|
80 |
M00CUQU-N/80A/690V |
4331027 |
5.350 |
25 |
gR |
3/120 |
180 |
|
|
100 |
M00CUQU-N/100A/690V |
4331028 |
10.500 |
32 |
gR |
3/120 |
180 |
|
|
125 |
M00CUQU-N/125A/690V |
4331029 |
21.300 |
40 |
gR |
3/120 |
180 |
|
|
00 |
6 |
M00UQU-N/6A/690V |
4331201 |
18 |
2,8 |
gR |
3/90 |
180 |
|
10 |
M00UQU-N/10A/690V |
4331202 |
60 |
3,3 |
gR |
3/90 |
180 |
|
|
16 |
M00UQU-N/16A/690V |
4331203 |
170 |
4,1 |
gR |
3/90 |
180 |
|
|
20 |
M00UQU-N/20A/690V |
4331204 |
250 |
5 |
gR |
3/90 |
180 |
|
|
25 |
M00UQU-N/25A/690V |
4331205 |
460 |
5,8 |
gR |
3/90 |
180 |
|
|
35 |
M00UQU-N/35A/690V |
4331214 |
1.000 |
8 |
gR |
3/90 |
180 |
|
|
40 |
M00UQU-N/40A/690V |
4331208 |
1.300 |
11 |
gR |
3/90 |
180 |
|
|
50 |
M00UQU-N/50A/690V |
4331209 |
1.500 |
16 |
gR |
3/90 |
180 |
|
|
63 |
M00UQU-N/63A/690V |
4331210 |
3.000 |
20 |
gR |
3/90 |
180 |
|
|
80 |
M00UQU-N/80A/690V |
4331211 |
5.300 |
25 |
gR |
3/90 |
180 |
|
|
100 |
M00UQU-N/100A/690V |
4331212 |
9.000 |
32 |
gR |
3/90 |
180 |
|
|
125 |
M00UQU-N/125A/690V |
4331213 |
16.000 |
40 |
gR |
3/90 |
180 |
|
|
160 |
M00UQU-N/160A/690V |
4331215 |
24.000 |
44 |
aR |
3/90 |
180 |
|
|
1 |
35 |
M1UQU-N/35A/690V |
4333217 |
1.000 |
8 |
gR |
3/24 |
450 |
|
50 |
M1UQU-N/50A/690V |
4333208 |
1.500 |
16 |
gR |
3/24 |
450 |
|
|
63 |
M1UQU-N/63A/690V |
4333209 |
3.000 |
20 |
gR |
3/24 |
450 |
|
|
80 |
M1UQU-N/80A/690V |
4333210 |
5.300 |
25 |
gR |
3/24 |
450 |
|
|
100 |
M1UQU-N/100A/690V |
4333211 |
9.000 |
32 |
gR |
3/24 |
450 |
|
|
125 |
M1UQU-N/125A/690V |
4333212 |
16.000 |
40 |
gR |
3/24 |
450 |
|
|
160 |
M1UQU-N/160A/690V |
4333213 |
24.000 |
44 |
aR |
3/24 |
450 |
|
|
200 |
M1UQU-N/200A/690V |
4333214 |
40.000 |
58 |
aR |
3/24 |
450 |
|
|
224 |
M1UQU-N/224A/690V |
4333215 |
52.000 |
60 |
aR |
3/24 |
450 |
|
|
250 |
M1UQU-N/250A/690V |
4333216 |
65.000 |
63 |
aR |
3/24 |
450 |
|
|
2 |
80 |
M2UQU-N/80A/690V |
4334209 |
5.300 |
25 |
gR |
3/15 |
680 |
|
100 |
M2UQU-N/100A/690V |
4334210 |
9.000 |
32 |
gR |
3/15 |
680 |
|
|
125 |
M2UQU-N/125A/690V |
4334211 |
16.000 |
40 |
gR |
3/15 |
680 |
|
|
160 |
M2UQU-N/160A/690V |
4334213 |
24.000 |
44 |
aR |
3/15 |
680 |
|
|
200 |
M2UQU-N/200A/690V |
4334214 |
40.000 |
58 |
aR |
3/15 |
680 |
|
|
250 |
M2UQU-N/250A/690V |
4334216 |
60.000 |
63 |
aR |
3/15 |
680 |
|
|
280 |
M2UQU-N/280A/690V |
4334218 |
100.000 |
75 |
aR |
3/15 |
680 |
|
|
300 |
M2UQU-N/300A/690V |
4334219 |
140.000 |
85 |
aR |
3/15 |
680 |
|
|
315 |
M2UQU-N/315A/690V |
4334220 |
175.000 |
95 |
aR |
3/15 |
680 |
|
|
355 |
M2UQU-N/355A/690V |
4334221 |
220.000 |
100 |
aR |
3/15 |
680 |
|
|
400 |
M2UQU-N/400A/690V |
4334222 |
270.000 |
105 |
aR |
3/15 |
680 |
|
|
3 |
250 |
M3UQU-N/250A/690V |
4335207 |
60.000 |
63 |
aR |
3/12 |
880 |
|
280 |
M3UQU-N/280A/690V |
4335208 |
100.000 |
75 |
aR |
3/12 |
880 |
|
|
315 |
M3UQU-N/315A/690V |
4335209 |
175.000 |
95 |
aR |
3/12 |
880 |
|
|
355 |
M3UQU-N/355A/690V |
4335210 |
300.000 |
100 |
aR |
3/12 |
880 |
|
|
400 |
M3UQU-N/400A/690V |
4335211 |
441.700 |
105 |
aR |
3/12 |
880 |
|
|
450 |
M3UQU-N/450A/690V |
4335213 |
530.000 |
115 |
aR |
3/12 |
880 |
|
|
500 |
M3UQU-N/500A/690V |
4335214 |
620.000 |
130 |
aR |
3/12 |
880 |
|
|
560 |
M3UQU-N/560A/690V |
4335215 |
730.000 |
135 |
aR |
3/12 |
880 |
|
|
630 |
M3UQU-N/630A/690V |
4335216 |
850.000 |
140 |
aR |
3/12 |
880 |
|
