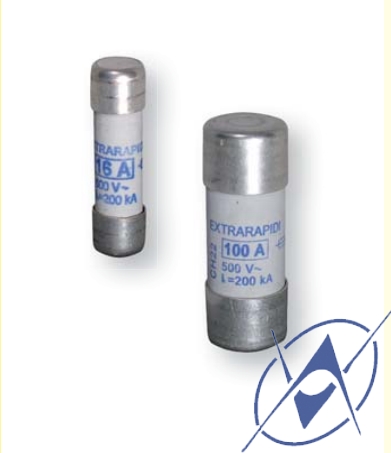

Сверхбыстрые предохранители CH UQ ( aR и gR характеристика)
|
CH UQ - характеристика aR (~200kA AC; ~600-690V AC) |
|||||||||
|
Размер |
IN (A) |
Тип |
Код |
Тип (c бойком) |
Код |
Рабочее значение I2t (A2s) |
Потери мощности (W) |
Упак. (шт.) |
Вес (г) |
|
|
6 |
CH 10UQ/6A/600V |
2625005 |
|
|
30 |
1,5 |
|
|
|
|
8 |
CH 10UQ/8A/600V |
2625006 |
|
|
50 |
2 |
|
|
|
|
10 |
CH 10UQ/10A/600V |
2625007 |
|
|
70 |
2,5 |
|
|
|
10x38 |
12 |
CH 10UQ/12A/600V |
2625008 |
|
|
120 150 |
3 3,5 |
10 |
|
|
16 |
CH 10UQ/16A/600V |
2625009 |
|
||||||
|
|
20 |
CH 10UQ/20A/600V |
2625011 |
|
|
260 |
4,8 |
|
|
|
|
25 |
CH 10UQ/25A/600V |
2625013 |
|
|
290 |
6 |
|
|
|
|
32 |
CH 10UQ/32A/600V |
2625015 |
|
|
600 |
7,5 |
|
|
|
|
10 |
CH 14UQ/10A/690V |
2635007 |
CH-S14/10A/690V |
2635107 |
22 |
4 |
|
|
|
|
12 |
CH 14UQ/12A/690V |
2635008 |
CH-S14/12A/690V |
2635108 |
50 |
5 |
|
|
|
|
16 |
CH 14UQ/16A/690V |
2635009 |
CH-S14/16A/690V |
2635109 |
75 |
5,5 |
|
|
|
14x51 |
20 |
CH 14UQ/20A/690V |
2635011 |
CH-S14/20A/690V |
2635111 |
180 |
6 |
10 22,5 |
|
|
25 |
CH 14UQ/25A/690V |
2635013 |
CH-S14/25A/690V |
2635113 |
320 |
7 |
|||
|
|
32 |
CH 14UQ/32A/690V |
2635015 |
CH-S14/32A/690V |
2635115 |
600 |
7,6 |
|
|
|
|
40 |
CH 14UQ/40A/600V |
2635017 |
CH-S14/40A/690V |
2635117 |
750 |
8 |
|
|
|
|
50 |
CH 14UQ/50A/500V |
2635019 |
CH-S14/50A/690V |
2635119 |
1.800 |
9 |
|
|
|
|
20 |
CH 22UQ/20A/690V |
2645011 |
CH-S22/20A/690V |
2645111 |
260 |
5,6 |
|
|
|
|
25 |
CH 22UQ/25A/690V |
2645013 |
CH-S22/25A/690V |
2645113 |
410 |
5,6 |
|
|
|
|
32 |
CH 22UQ/32A/690V |
2645015 |
CH-S22/32A/690V |
2645115 |
605 |
7 |
|
|
|
22x58 |
40 |
CH 22UQ/40A/690V |
2645017 |
CH-S22/40A/690V |
2645117 |
750 |
8,5 |
45 |
|
|
50 |
CH 22UQ/50A/690V |
2645019 |
CH-S22/50A/690V |
2645119 |
1.600 |
9,5 |
|||
|
|
63 |
CH 22UQ/63A/690V |
2645021 |
CH-S22/63A/690V |
2645121 |
3.080 11 |
|
||
|
|
80 |
CH 22UQ/80A/600V |
2645023 |
CH-S22/80A/690V |
2645123 |
6.600 |
13,5 |
|
|
|
|
100 |
CH 22UQ/100A/500V |
2645025 |
CH-S22/100A/500V |
2645125 |
12.500 |
16 |
|
|
|
CH UQ - характеристика gR (~200kA AC; ~690V AC) |
|||||||
|
Размер |
IN (A) |
Тип |
Код |
Рабочее значение I2t (A2s) |
Потери мощности (W) |
Упак. (шт.) |
Вес (г) |
|
|
1 |
AQS 10 UQ/1A/690V |
2645126 |
1,6 |
1 |
|
|
|
|
2 |
AQS 10 UQ/2A/690V |
2645127 |
8 |
1,8 |
|
|
|
|
4 |
AQS 10 UQ/4A/690V |
2645128 |
8 |
1,1 |
|
|
|
|
6 |
AQS 10 UQ/6A/690V |
2645129 |
25 |
1,6 |
|
|
|
|
8 |
AQS 10 UQ/8A/690V |
2645130 |
39 |
1,8 |
|
|
|
10x38 |
10 |
AQS 10 UQ/10A/690V |
2645131 |
66 |
2,1 |
10
|
|
|
12 |
AQS 10 UQ/12A/690V |
2645132 |
87 |
3,1 |
|||
|
16 |
AQS 10 UQ/16A/690V |
2645133 |
166 |
4,4 |
|||
|
20 |
AQS 10 UQ/20A/690V |
2645134 |
280 |
5,8 |
|||
|
25 |
AQS 10 UQ/25A/690V |
2645135 |
580 |
6,8 |
|||
|
30 |
AQS 10 UQ/30A/690V |
2645136 |
1010 |
8,2 |
|||
|
|
6 |
AQS 14 UQ/6A/690V |
2645137 |
18 |
1,3 |
|
|
|
|
8 |
AQS 14 UQ/8A/690V |
2645138 |
28 |
1,7 |
|
|
|
|
10 |
AQS 14 UQ/10A/690V |
2645139 |
39 |
2,6 |
|
|
|
|
12 |
AQS 14 UQ/12A/690V |
2645140 |
75 |
3,1 |
10 |
|
|
14x51 |
16 |
AQS 14 UQ/16A/690V |
2645141 |
115 |
4,7 |
22,5 |
|
|
20 |
AQS 14 UQ/20A/690V |
2645142 |
190 |
6 |
|||
|
|
25 |
AQS 14 UQ/25A/690V |
2645143 |
340 |
7,6 |
|
|
|
|
32 |
AQS 14 UQ/32A/690V |
2645144 |
620 |
9,5 |
|
|
|
|
40 |
AQS 14 UQ/40A/690V |
2645145 |
1050 |
10 |
|
|
|
|
50 |
AQS 14 UQ/50A/690V |
2645146 |
1900 |
12 |
|
|
|
|
20 |
AQS 22 UQ/20A/690V |
2645147 |
91 |
6 |
|
|
|
|
25 |
AQS 22 UQ/25A/690V |
2645148 |
140 |
7,2 |
|
|
|
|
32 |
AQS 22 UQ/32A/690V |
2645149 |
315 |
9,6 |
|
|
|
22x58 |
40 |
AQS 22 UQ/40A/690V |
2645150 |
610 |
12 |
45 |
|
|
50 |
AQS 22 UQ/50A/690V |
2645151 |
910 |
15 |
|||
|
|
63 |
AQS 22 UQ/63A/690V |
2645152 |
2260 |
16 |
|
|
|
|
80 |
AQS 22 UQ/80A/690V |
2645153 |
4400 |
18 |
|
|
|
|
100 |
AQS 22 UQ/100A/690V |
2645154 |
8900 |
19 |
|
|
